Particulate matter monitor enviDUST

enviDUST

Dust monitor intended for continuous monitoring of air quality. It measures the mass concentration of aerosol particles of fractions PM10, PM2.5 and PM1 and the number concentration of aerosol particles – all in real time and simultaneously. Optical method based on the principle of light scattering. It is an almost maintenance-free device and the possibility of mounting the device – fastening, for example On a wall or mast, according to requirements.

The possibility of creating local dust particle measurement networks
Modularity of the device
Low acquisition costs compared to professional analyzers
Low operating costs
Maintenance-free device
The possibility of using different data transfers according to the suitability of the application (GPRS, LoRa, SigFox, …)
An alternative option for mounting the device

Automatic sensory immission monitoring station

enviSENS

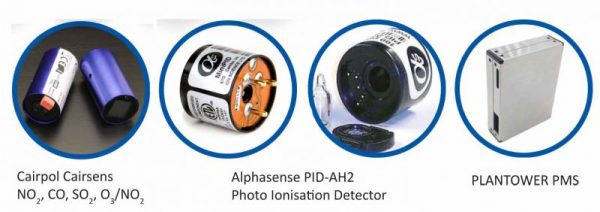

This modular station is designed for measurement with the option of choosing different sensor units from different manufacturers. It is possible to create local measurement networks and online sending of measured data using LORA technology to a superior control unit. Sensor units located as standard in the ENVI-SENS unit: NO2, CO, SO2, O3 / NO2, dust, VOC, PAH

senzory

Hybrid monitoring system

The hybrid system offers you a complex solution consisting of:

• from a network of sensory meters
• from the reference measuring station
• from software that processes data and provides information to both the state administration and the public via mobile devices.

Scheme of the hybrid system

This hybrid system can monitor the whole range of parameters that pollute the air, but the main monitored parameter is dust particles of the size PM1.0, PM2.5, PM10.
